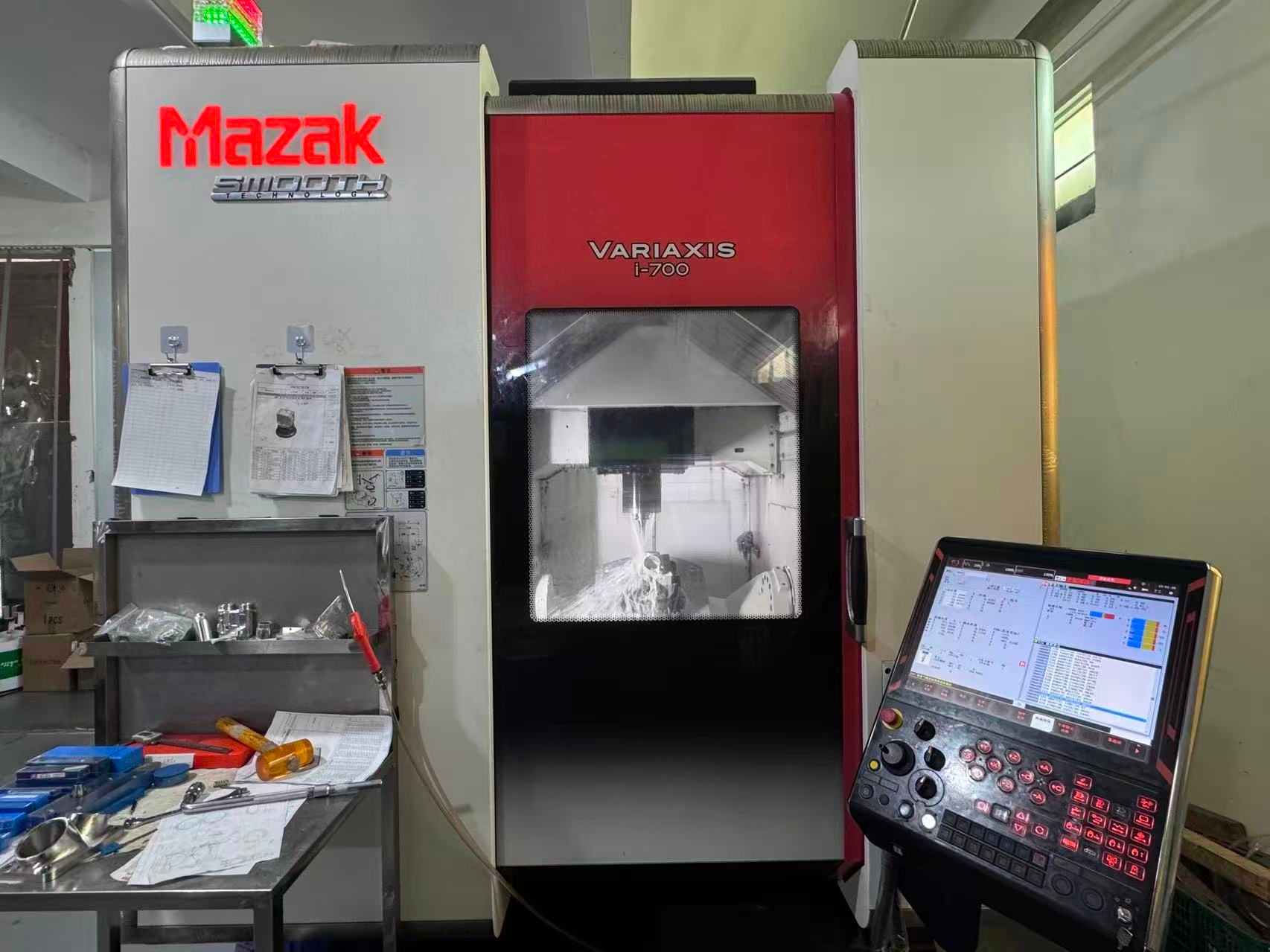

5-axis CNC machining is not just a standard technical upgrade. It acts as a highly strategic business decision for scaling the production of complex parts. Traditional 3-axis or 3+2 axis methods work exceptionally well for basic, standard geometries. However, modern engineering demands continuously push the limits of manufacturing. You need tighter tolerances to ensure product safety. You need fewer setups to accelerate production. You have zero room for stack-up errors in critical assemblies.
This comprehensive guide breaks down the top five operational benefits of adopting true 5-axis technology. We will thoroughly analyze the Total Cost of Ownership (TCO) to help you grasp the financial realities of this investment. We also provide a practical framework for deciding exactly when you should leverage simultaneous 5-axis capabilities. By the end of this article, you will know how to evaluate your designs, avoid expensive overengineering, and select a highly capable manufacturing partner.
Simultaneous 5-axis machining eliminates the need for multiple setups, drastically reducing fixture costs and cumulative alignment errors.
Using shorter cutting tools minimizes vibration, which not only improves aesthetic surface finishes but directly increases functional fatigue resistance.
While upfront equipment and CAM programming costs are high, the ROI is realized through lower scrap rates, eliminated secondary operations, and faster lead times for low-volume complex parts.
Selecting the right manufacturing partner requires evaluating their CAM expertise, specific machine kinematics, and industry-specific compliance (e.g., AS9100, ISO 9001).
Buyers often overpay for manufacturing services. They request full 5-axis machining when they only need positional 3+2 capabilities. We must clarify this critical distinction to establish proper evaluation criteria. Understanding the difference saves you significant time and money during the quoting process.
3+2 Machining (Positional)
In this method, the cutting tool locks into a tilted position. The machine uses two rotary axes to achieve this specific angle. Once locked, the machine executes a standard 3-axis milling program. The axes do not move simultaneously during the actual cut. This positional approach is highly cost-effective and ideal for machining flat features on multiple sides of a prismatic part.
Simultaneous 5-Axis Machining
Here, the cutting tool and the workpiece move dynamically across all five axes at the exact same time. The machine continually adjusts the tool angle as it travels along the part surface. This simultaneous movement prevents tool interference and allows for perfectly smooth, continuous cutting paths.
The Decision Rule
You must use simultaneous capabilities for continuous complex surfaces and precision components, such as impellers and organic curves. Conversely, you should choose 3+2 machining as a cost-effective alternative for multi-sided prismatic parts that lack compound curvatures.
Feature | 3+2 Machining (Positional) | Simultaneous 5-Axis Machining |
|---|---|---|
Axis Movement | 2 rotary axes lock; 3 linear axes move. | All 5 axes move continuously together. |
Ideal Application | Multi-sided flat features, prismatic parts. | Organic shapes, impellers, compound curves. |
CAM Programming | Moderate complexity. | Highly complex, requires advanced software. |
Setup Cost | Lower initial programming cost. | Higher Non-Recurring Engineering (NRE) cost. |
You can machine up to five sides of a part in a single fixturing step. This consolidated approach completely eliminates manual handling midway through the process. Operators do not need to unclamp, rotate, and re-clamp the workpiece.
This single-setup capability creates immense value. It drastically slashes overall setup times across your production schedule. More importantly, it prevents dangerous tolerance stack-up errors. These cumulative errors naturally occur when you move parts between multiple traditional 3-axis workstations. A single setup guarantees that all geometric features maintain perfect relational alignment.
Modern engineering leaves no room for dimensional drift. Simultaneous 5-axis equipment consistently achieves typical tolerances of ±0.01 to ±0.02 mm. In strictly controlled environments with thermal compensation, these machines can even hold tolerances up to ±0.005 mm.
This extreme precision delivers immense commercial value. It proves absolutely crucial for mating components in complex assemblies. When parts fit perfectly on the first try, you eliminate costly rework. High precision directly dictates final assembly viability and overall product safety.
Simultaneous machining constantly adjusts the tool angle. This dynamic movement keeps the tool perfectly perpendicular to the cutting surface at all times. Because the angle remains optimal, operators can use much shorter, highly rigid cutting tools.
Shorter tools dramatically reduce chatter and vibration during heavy cuts. This reduction leads directly to lower Ra values. You eliminate ugly step-over marks entirely. Lower Ra values mean your team spends much less time on manual polishing. Beyond aesthetics, this smooth finish greatly enhances functional fatigue resistance. Micro-fractures often start in surface ridges. Eliminating these ridges protects critical load-bearing parts from premature failure.
Traditional milling limits your design choices. 5-axis technology completely unlocks the ability to machine deep cavities, sharp undercuts, and sweeping compound curves. It achieves this without causing dangerous tool interference or machine collisions.
This capability provides design engineers with ultimate freedom. They can finally prioritize structural performance over rigid manufacturability constraints. You no longer need to compromise aerodynamic shapes. Furthermore, this access completely eliminates the need to split complex parts into multiple welded sub-assemblies. You can mill a stronger, unified component from a single solid billet.
Cutting tools endure massive stress. Simultaneous 5-axis programming continuously optimizes the tool's cutting angle against the material. This constant optimization maintains ideal chip loads throughout the entire machining cycle.
Consistent chip loads protect the cutting edges. This significantly extends overall tool life. You reduce your monthly consumable costs dramatically. Additionally, you minimize expensive machine downtime required for frequent tool changeouts. These long-term operational cost savings help offset the initial premium of the 5-axis equipment.
We must map these technical benefits to real-world applications. Standard machining often fails to meet strict compliance demands or geometric requirements in high-stakes industries. Here is where the premium investment clearly pays off.
Flight safety demands absolute perfection. Manufacturers rely heavily on 5-axis technology for the production of turbine blades for aero-engines, integral blisks, fuel nozzles, landing gear components. These aerospace parts feature complex aerodynamic curves that direct airflow precisely.
Moreover, aerospace manufacturing involves processing extreme hard-steels, titanium, and heat-resistant specialty alloys. You must machine these difficult materials accurately without relying on secondary finishing operations. Single-setup 5-axis milling ensures material integrity remains uncompromised.
The automotive sector thrives on speed and innovation. Engineering teams require rapid iteration of automotive components, alloy wheel prototypes, engine intake manifolds, core components of turbochargers.
Simultaneous machining delivers unparalleled low-volume production efficiency. Motorsport teams can test a new aerodynamic manifold design, send the CAD file to the floor, and receive a perfect prototype hours later. They bypass the need for expensive custom casting molds during the early R&D phases.
Mass production relies entirely on perfect tooling. 5-axis technology is indispensable for the development of precision moulds.
When creating injection molds, surface quality dictates everything. A seamless surface finish on the mold cavity directly determines the quality of thousands of downstream plastic parts. 5-axis machines create perfectly smooth draft angles and complex parting lines that 3-axis machines simply cannot reach.
The medical industry operates under the strictest regulatory scrutiny. Manufacturers produce orthopedic implants, joint replacements, and specialized surgical instruments. These devices feature highly complex organic shapes designed to match human anatomy.
These components require strict adherence to FDA regulations and ISO 13485 quality standards. 5-axis machining provides the exact repeatability needed to pass these rigorous compliance audits batch after batch.
We must address the elephant in the room. 5-axis CNC machining carries a significant premium cost. Understanding the Total Cost of Ownership (TCO) builds transparency and helps you make authoritative procurement decisions.
Common Mistake: Many procurement teams fall into the overengineering trap. They specify 5-axis machining for simple brackets, flat plates, or basic enclosures.
We strongly warn against this practice. For simple parts, automated 3-axis batch production remains objectively cheaper and significantly faster. You should never pay a premium hourly rate for dynamic kinematics when a standard vertical mill can do the job perfectly.
Simultaneous 5-axis operations require highly specialized CAM programmers. Standard code will not work. Programmers must use advanced simulation software to calculate dynamic toolpaths and prevent catastrophic machine collisions.
This specialized labor drives up your Non-Recurring Engineering (NRE) costs. Your initial setup fee will be noticeably higher. You must factor this upfront programming overhead into your R&D budget.
5-axis machines feature highly complex trunnions and swivel heads. They have far more moving parts than standard mills. This mechanical complexity naturally leads to higher maintenance risks.
Additionally, these massive machines draw significant power. A high-kW electrical draw increases your facility's monthly energy consumption. You must plan for stricter preventative maintenance schedules to avoid costly spindle replacements.
If the upfront costs are so high, how do you achieve a positive ROI? The financial breakeven logic relies on overall operational consolidation.
Drastically reduced scrap rates: Single-setup processing eliminates alignment errors, meaning fewer parts end up in the scrap bin.
Elimination of custom fixturing: You do not need to design, machine, and store five different custom workholding fixtures for one complex part.
Faster time-to-market: You condense weeks of routing between different machines into a single afternoon. Launching your product earlier generates revenue faster.
Finding a vendor with a 5-axis machine is easy. Finding a reliable manufacturing partner requires strict vetting. Procurement teams can use this actionable framework to evaluate potential suppliers.
First, you must verify their actual equipment list. Many vendors loosely market standard 3+2 machines as "5-axis capabilities." Ask them for specific machine models and controller types. Ensure the vendor actually possesses true simultaneous 5-axis kinematics. If they only have 3+2 positional mills, they cannot manufacture your complex impellers.
Look for partners who provide proactive, upfront Design for Manufacturing (DFM) feedback. A superior partner will not just blindly press start on your CAD file.
Best Practice DFM Checks:
They advise on standardizing fillet radii to match specific tool sizes.
They suggest optimal draft angles to improve tool access.
They request overflow stock on specific faces designed for post-machining polishing.
They help you establish smart, unified datum strategies to ensure perfect part alignment during inspection.
Finally, demand verifiable quality certifications relevant to your specific sector. Beautifully machined parts mean nothing if they lack compliance documentation. Verify their AS9100 certification for aerospace projects. Require ISO 9001 for general precision components. Demand FDA registration and ISO 13485 compliance for any medical device manufacturing.
Simultaneous 5-axis CNC machining represents a significant upfront investment. However, it delivers unmatched geometric freedom, complete operational consolidation, and supreme dimensional repeatability. You eliminate tolerance stack-up errors, extend tool life, and gain the ability to machine impossible compound curves.
To maximize your return on investment, you must align the technology with the right application. Avoid overengineering simple brackets, but embrace the 5-axis advantage for your critical aerospace, automotive, and medical components.
We highly encourage you to take the next step. Submit your complex CAD files for a comprehensive DFM review. A rigorous engineering review will determine exactly if your parts require true simultaneous 5-axis milling, or if a cost-effective 3+2 positional strategy will achieve your desired results.
A: Yes. For highly complex parts, it eliminates the need to design and machine multiple custom fixtures. This makes low-volume runs and prototyping surprisingly cost-efficient. You bypass massive upfront tooling investments and achieve faster iteration cycles, saving both time and engineering resources.
A: While standard CNC milling holds ±0.05 mm, precision 5-axis machining routinely achieves tolerances between ±0.01 and ±0.02 mm. This exact tolerance depends on the material and part geometry. In strictly temperature-controlled environments, operators can even hold ultra-tight tolerances up to ±0.005 mm.
A: Generating toolpaths that simultaneously control five axes requires highly advanced software to prevent machine collisions. It also demands highly skilled engineers who understand complex kinematics. This specialized expertise naturally increases the initial setup time and drives up your non-recurring engineering (NRE) costs.
