While software and artificial intelligence drive the logic of modern automation, physical execution relies entirely on the kinematic accuracy and durability of physical hardware. Without flawless mechanics, even the most advanced algorithms fail to deliver precise real-world results.
Transitioning from functional prototypes to scalable robotic fleets exposes severe manufacturing risks. Whether you build industrial SCARA arms or delicate surgical cobots, you must constantly overcome tolerance stacking, joint friction, and material fatigue. If one joint housing deviates slightly, the entire arm misses its programmed coordinate.

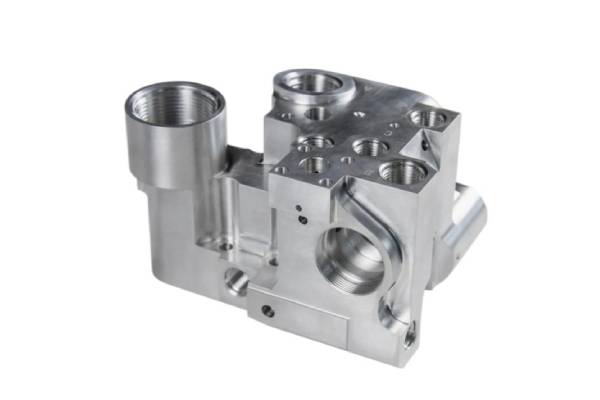

Precision CNC Milled Parts bridge the crucial gap between digital design and physical reliability. This guide breaks down how to evaluate materials, specify tolerances, and select manufacturing approaches for critical robotic hardware. You will learn to mitigate risks, ensure long-term performance, and scale production seamlessly.
Tolerance Realities: High-performance robotic joints and drive systems require repeatable tolerances down to ±0.005mm to prevent backlash and ensure smooth multi-axis motion.
Material-to-Application Mapping: Selecting the right stock—ranging from Aluminum 7075 for lightweight arms to PEEK for low-friction end effectors—is critical for balancing payload capacity and motor draw.
Process Selection: Complex geometries require 5-axis CNC milling to minimize setups and preserve geometric dimensioning and tolerancing (GD&T), while miniature motor shafts and pins are better suited for Swiss CNC machining.
Risk Mitigation: Evaluating a manufacturing partner requires looking beyond machine lists to actual Quality Assurance (QA) capabilities, including automated CMM validation and DFM (Design for Manufacturability) intervention.
Engineers face a tough choice when designing physical automation systems. They must balance precision against speed and scalability. Traditional methods like metal casting often suffer from internal porosity and shrinkage. 3D printing provides rapid shapes but lacks the isotropic strength required for heavy payloads. This makes precision CNC Machined Components the definitive choice for modern robotics.
Complex robotic assemblies rely on stacked components. If each part features a minor dimensional deviation, these errors stack up across the kinematic chain. This stacking causes catastrophic operational failure at the end effector. CNC milling actively prevents this. It achieves ultra-tight tolerances, often reaching up to 0.0001 inches (0.00254mm). Such exactness guarantees your joints align perfectly and gears mesh without destructive backlash.
A robotic joint constantly fights friction. Rough surfaces generate heat, draw excess motor current, and wear out seals. CNC milling delivers exceptional surface finishes directly from the machine tool. Achieving a low surface roughness of Ra 0.8 μm is entirely routine. This mirror-like finish remains crucial for low-friction movement in dynamic joints, hydraulic seals, and tight bearing interfaces.
Managing a fleet of robots requires predictable maintenance. You need replacement parts to fit perfectly without custom adjustments in the field. CNC machining relies on a strictly controlled CAD/CAM digital thread. This digital lock ensures unit #1,000 behaves exactly like unit #1. Such absolute consistency simplifies field replacements and reduces downtime for your customers.
Robotics engineering moves fast. You must test physical kinematics before locking in final designs. CNC machining enables incredibly fast functional prototyping. You skip the massive tooling investments required for injection molding or die casting. You can machine a custom sensor mount, test it, adjust the CAD file, and machine a new version the very next day. Once validated, you immediately scale into high-volume production.
Every robotic sub-system presents unique manufacturing hurdles. We can categorize these challenges by examining the target part, typical material, core engineering challenge, and specific CNC solution.
Target Materials: Aluminum 6061/7075, Cast Aluminum.
Engineering Challenge: Structural frames require high material removal rates to achieve lightweight, thin-walled designs. However, aggressive milling introduces severe thermal stress and vibration. This can easily cause part deformation. Engineers must maintain structural rigidity while relentlessly minimizing weight to preserve the robot's payload capacity.
CNC Solution: High-speed vertical and horizontal CNC milling provides the answer. Machinists use optimized toolpaths, like trochoidal milling, to manage cutting forces and control heat. This prevents thermal expansion during the cut. It ensures thin-walled structures remain dimensionally stable and perfectly straight.
Target Materials: Alloy Steel, Pre-hardened Steel, Titanium.
Engineering Challenge: Joints demand strict concentricity. They feature complex internal geometries requiring interrupted cuts. Any slight misalignment creates a backlash in the housing fit. This backlash ruins the absolute positional accuracy required for multi-axis kinematic motion.
CNC Solution: 5-axis CNC milling solves this by severely limiting clamping setups. The machine approaches the part from nearly any angle. This reduces human alignment errors caused by moving parts between different machines. It guarantees perfectly aligned bores and zero-backlash housing fits.
Target Materials: Stainless Steel 316, Aluminum, PEEK, POM (Delrin).
Engineering Challenge: EOAT components interact directly with fragile environments. Custom interfaces, such as vacuum mounts, grippers, and probe housings, require highly specific profiles. They also demand lightweight footprints so they do not artificially max out the robot's overall payload limit.
CNC Solution: Precision micro-milling handles these delicate features. Machinists carefully select specialized feed rates and miniature tooling. This prevents burrs on delicate gripping surfaces. It also prevents plastic deformation when cutting soft materials like POM or PEEK.
Target Materials: High-Carbon Steel, Brass (C360).
Engineering Challenge: Drive systems like harmonic and RV reducers face immense physical wear. They transfer massive torque loads. Manufacturing them requires prolonged, continuous machining of high-hardness materials. This leads to rapid tool wear and drifting dimensional accuracy over a long production run.
CNC Solution: Manufacturers deploy highly rigid CNC platforms equipped with specialized carbide tooling. They integrate CNC gear hobbing processes to ensure absolute tooth profile consistency. Strong machine rigidity absorbs vibration, extending tool life and preserving gear longevity.
Choosing the right raw material directly influences your robot's strength, weight, and lifespan. The chart below summarizes the most effective materials for robotic applications.
| Material Category | Typical Grades | Key Characteristics | Ideal Robotics Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075 | Excellent strength-to-weight ratio. High machinability. Accepts hard anodizing for durability. | Cobot structures, industrial arms, lightweight frames, assembly trays. |
| Stainless Steel | 304, 316 | High tensile strength. Superior impact and corrosion resistance. Can withstand harsh sterilization. | Medical robot chassis, underwater ROVs, exposed environmental joints. |
| Titanium | Ti-6Al-4V | Maximum strength with minimal mass. Poor thermal conductivity requires specialized cutting strategies. | Aerospace robotics, surgical manipulators, highly specialized payload components. |
| Engineering Plastics | PEEK, Delrin, Nylon | Inherent low-friction properties. Excellent electrical insulation. Drastically reduces assembly weight. | Non-metallic gears, sensor housings, low-friction bushings, custom grippers. |
Not all CNC machines handle robotic parts equally. Choosing the correct machining architecture is critical for protecting your budget and ensuring part accuracy. You generally choose between multi-axis milling and Swiss-style turning.
This process moves the cutting tool or the part across five distinct axes simultaneously. It handles the largest, most complicated geometries.
Best for: Complex, multi-sided structural components, intricate sensor mounts, and heavy joint housings.
Advantage: It machines complex geometries in a single setup. Traditional 3-axis milling requires operators to unclamp and flip the part manually. Each flip introduces a microscopic alignment error. 5-axis milling drastically reduces human error in re-fixturing. This preserves strict Geometric Dimensioning and Tolerancing (GD&T) callouts across the entire part.
Watch out for: Programming 5-axis toolpaths takes longer. It requires highly skilled CAM engineers to prevent tool collisions during multi-angle approaches.
Originally designed for the watchmaking industry, Swiss machines specialize in long, slender, and highly detailed cylindrical parts.
Best for: Miniature, high-volume cylindrical components. Examples include motor shafts, custom fasteners, micro-gears, and miniature joint pins used in surgical robotics.
Advantage: A standard lathe clamps a part at one end. If the part is long, the cutting tool pushes against it, causing it to bend or deflect. Swiss CNC machines use a guide bushing. This bushing supports the material right next to the cutting tool. It entirely prevents deflection on long, slender parts. This allows for intricate detailing on micro-components critical to medical and miniature robotics.
Watch out for: Swiss machining requires specialized bar stock. It is less suited for wide, boxy, or purely prismatic structures.
Evaluating a manufacturing partner requires looking far beyond a simple list of available machines. You must assess their actual engineering culture and quality assurance framework. A poor partner will blindly machine a flawed CAD file. A great partner will actively improve it.
Look for a partner who actively audits your CAD files before spinning up a single spindle. They should hunt for undercuts, unnecessarily deep pockets, or non-standard radii. A sharp inside corner might look great on screen, but it requires tiny, fragile cutting tools that drive up machining costs. A proactive DFM intervention ensures your part is optimized for the machine, eliminating hidden risks and cost overruns.
Robotics requires empirical proof of accuracy. The facility must operate well beyond basic visual checks or manual calipers. Require automated Coordinate Measuring Machine (CMM) inspections. Furthermore, ensure the CMM software directly cross-references the native 3D CAD model, rather than relying on an outdated 2D paper print. This creates a closed-loop validation system.
If your robot fails, you need to know exactly where the metal came from. For medical, aerospace, or advanced industrial robotics, ISO 9001:2015 is the absolute baseline standard. However, you should look for AS9100D certification. This aerospace standard indicates a superior, risk-averse quality management system. It guarantees full material traceability from the raw billet to the final inspected component.
Your needs will change rapidly. You might need five functional prototypes this month and ten thousand units next year. The vendor should possess the infrastructure to seamlessly transition your project across these phases. They should manage inventory, scale machine allocation, and maintain quality without suddenly extending lead times when volume spikes.
Procuring precision machined parts for robotics is ultimately an exercise in risk management. The physical world is unforgiving, and your hardware must perform flawlessly across millions of cycles.
Success depends on aligning the right material to your specific payload and environmental needs.
You must specify rigorous tolerances to prevent backlash and joint failure.
Choosing the correct machining process—whether 5-axis milling for complex housings or Swiss turning for slender shafts—guarantees repeatability.
Vetting a partner based on their QA and DFM capabilities protects your timeline and budget.
Actionable Next Step: Before finalizing your part designs, engage a qualified CNC machining provider for a comprehensive DFM review. Let their engineering team audit your files to eliminate hidden costs, optimize material selection, and ensure your components can meet real-world kinematic demands.
A: While general machining might target ±0.1mm, critical robotics components regularly require precision down to ±0.005mm. Parts like bearing housings, transmission shafts, and joint interfaces need these ultra-tight tolerances to ensure perfectly smooth movement, maintain concentricity, and actively prevent mechanical backlash.
A: A high-quality surface finish, such as Ra 0.8 μm or better, is absolutely vital for moving parts. It drastically reduces friction and minimizes wear over millions of operational cycles. Furthermore, a smooth surface ensures the proper seating and sealing of dynamic seals in hydraulic or pneumatic robotic actuators.
A: Yes. CNC milling requires no hard tooling, unlike injection molding or metal casting. This makes it highly cost-effective for producing initial functional prototypes rapidly. Once validated, the exact same programmed toolpaths and custom fixtures can be scaled across multiple machines for consistent, high-volume production runs.
A: Titanium offers exceptional strength-to-weight benefits but suffers from very poor thermal conductivity. This means heat builds up aggressively at the cutting edge instead of escaping through the chips. It requires specialized carbide tooling, advanced coolant strategies, and highly rigid machine setups to prevent tool breakage and part deformation.
