Heavy-duty gearboxes operate under extreme torque, radial loads, and continuous operational stress. Component failure in these environments results in catastrophic downtime and severe financial loss. Off-the-shelf gears, shafts, and housings frequently fail to meet the exact dimensional tolerances and load-bearing requirements of specialized heavy equipment. This mismatch leads to premature wear, misalignment, and thermal degradation across the powertrain.
Securing reliable custom CNC machining services solves this problem by producing gearbox components that meet stringent engineering specifications. Precision manufacturing ensures optimal gear mesh, superior heat dissipation, and extended operational lifespans. This guide outlines the technical criteria, material trade-offs, and vendor evaluation frameworks necessary to source high-precision gearbox parts effectively.
Tolerance is Non-Negotiable: Heavy-duty gearbox efficiency relies on micron-level precision; evaluate machining partners strictly on their metrology and verifiable quality assurance (QA) protocols.
Material-Specific Expertise Matters: While hardened steels dominate internal gearing, custom aluminum CNC machining is increasingly critical for reducing the weight of complex gearbox housings without sacrificing structural integrity.
Setup Reduction Drives Accuracy: Utilizing custom aluminum 5-axis CNC machining minimizes part handling, directly improving the concentricity and alignment of complex gearbox casings.
DFM Integration Prevents Delays: Engaging a machining job shop with robust Design for Manufacturability (DFM) capabilities mitigates the risks of tool deflection, excessive lead times, and budget overruns.
Heavy-duty gearbox components must survive brutal operating conditions. Success criteria center on high fatigue strength, precise gear mesh alignment, and optimal heat dissipation. Powertrains in mining excavators, industrial shredders, and marine propulsion systems endure massive shock loads daily. Gears must transfer power efficiently without generating excessive friction or heat. Shafts require perfect concentricity to prevent bearing failure under heavy radial loads. Housings must maintain structural rigidity while dissipating internal heat generated by the gear train. Every component relies on exact dimensional control to function cohesively within the assembly. When a bearing bore is machined out of round by even a thousandth of an inch, the roller bearings bind, generate extreme heat, and eventually spall, destroying the entire gearbox.
Standard off-the-shelf components often compromise powertrain integrity. Mass-produced parts suffer from loose tolerances that cause spline shearing under heavy torque applications. Bearing bores in standard cast housings frequently distort when subjected to high radial loads. This distortion causes shaft misalignment, accelerating gear tooth wear and causing premature failure. Custom machining directly addresses these failure modes. Machinists hold tight geometric tolerances on critical features, ensuring true position and cylindricity on bearing journals. This exact dimensional control eliminates the mechanical slop that destroys standard components. By controlling the exact fit between mating parts, custom machining ensures the load is distributed evenly across the gear teeth and bearing surfaces.
Heavy equipment often outlasts the original equipment manufacturer (OEM) support lifecycle. When replacement parts become obsolete, reverse engineering becomes the only viable solution. Machinists use laser scanning arms and coordinate measuring machines (CMM) to map worn components. They generate accurate 3D solid models from these point clouds. Shops then manufacture non-standard gear profiles and custom splines that OEMs no longer supply. This capability extends to full custom machined assemblies. Manufacturers can source complete, drop-in replacement gearboxes tailored to specific, upgraded performance requirements. If a legacy gearbox consistently fails at a specific shaft, engineers can redesign that shaft with a larger fillet radius or a stronger alloy, and a custom machine shop can produce the upgraded part.
Internal and external gearbox components demand entirely different machining strategies. Internal load-bearing elements like gears, pinions, and shafts require extreme surface hardness and tight profile tolerances. Machinists often hard-turn or grind these parts after heat treatment to achieve exact involute profiles and superior surface finishes. External structural elements, such as housings, covers, and mounting brackets, present different challenges. These parts feature complex geometries, deep pockets, and intersecting fluid channels. The focus here shifts to maintaining positional accuracy across large spans and ensuring flat, leak-free mating surfaces. A housing might require a flatness callout of 0.001 inches across a 30-inch mating flange to prevent oil leaks under pressure.
Internal gearing relies heavily on high-strength alloys like 8620, 4340, and 9310 steels. These materials offer exceptional core toughness and accept case hardening well. Carburizing an 8620 steel gear creates a hard, wear-resistant outer case (often 58-62 HRC) while maintaining a ductile core (around 30 HRC) that absorbs shock loads. However, machining these alloys presents significant challenges. Cutting hardened steel rapidly accelerates tool wear. Machinists must utilize specialized ceramic or cubic boron nitride (CBN) inserts. Post-heat treatment machining requires immense machine rigidity to prevent chatter. Managing cutting temperatures is critical to avoid altering the material's metallurgical properties. Shops must balance aggressive material removal rates with the need to preserve tool life and surface finish.
Weight reduction is a growing priority in specialized heavy equipment and aerospace applications. Engineers increasingly specify custom aluminum CNC machining for rigid, thermally efficient gearbox casings. Alloys like 7075-T6 and 6061-T6 provide excellent strength-to-weight ratios. Aluminum dissipates heat rapidly, keeping internal gearbox temperatures manageable during continuous operation. Machining aluminum allows for faster spindle speeds and higher feed rates compared to steel. This efficiency reduces overall cycle times for large housings. However, machinists must carefully manage workholding to prevent distorting thin-walled aluminum structures during aggressive milling operations. Clamping forces must be distributed evenly, often requiring custom soft jaws or vacuum fixtures.
Material selection directly impacts the thermal dynamics of the gearbox assembly. Engineers must evaluate the conceptual trade-offs between material weight, tensile strength, machinability, and thermal expansion coefficients. Aluminum expands at a different rate than steel under heat. When pressing steel bearings into aluminum housings, machinists must calculate these expansion rates precisely. If the bearing bore is machined too large, the bearing will spin at operating temperature, destroying the housing. If machined too tight, the housing may crack, or the bearing will be crushed, leading to premature failure. Expert machining partners understand these thermal interactions and adjust their cutting strategies to compensate for operational temperature fluctuations.
Gearbox Component Material Comparison
| Material Grade | Primary Application | Machinability Rating | Thermal Conductivity | Key Machining Challenge |
|---|---|---|---|---|
| AISI 8620 Steel | Gears, Pinions | Good (Pre-Heat Treat) | Low | Distortion during case hardening |
| AISI 4340 Steel | Drive Shafts | Fair | Low | High tool wear during hard turning |
| Aluminum 7075-T6 | High-Stress Housings | Excellent | High | Managing thermal expansion during cutting |
| Aluminum 6061-T6 | Covers, Brackets | Excellent | High | Preventing thin-wall distortion |
Drive shafts and gear blanks require high-rigidity CNC lathes. Heavy-duty turning centers built with box ways rather than linear guides remove massive amounts of raw material quickly without inducing vibration. They establish the foundational concentricity required for smooth power transmission. Achieving exact involute profiles requires specialized gear hobbing and shaping equipment. Hobbing cuts continuous gear teeth with high precision. For hardened gears, shops follow hobbing with CNC gear grinding. This multi-step process ensures the gear teeth mesh perfectly, minimizing noise and preventing premature wear under heavy loads. Grinding also corrects any minor distortions that occur during the heat treatment process.
Heavy equipment housings and ultra-large gears demand specialized infrastructure. Standard CNC mills cannot accommodate massive payloads or the physical dimensions of these parts. Shops require large-format CNC mills and horizontal boring mills (HBMs) to handle these components. HBMs provide the extended reach necessary to bore deep bearing journals in massive cast or billet housings. A W-axis quill on an HBM allows the spindle to extend deep into a part without relying on long, flexible tooling that causes chatter. Machining these large envelopes requires specialized heavy-duty workholding and overhead cranes for part loading. Maintaining tight tolerances across a two-meter housing span tests the geometric accuracy and thermal stability of the machine tool itself.

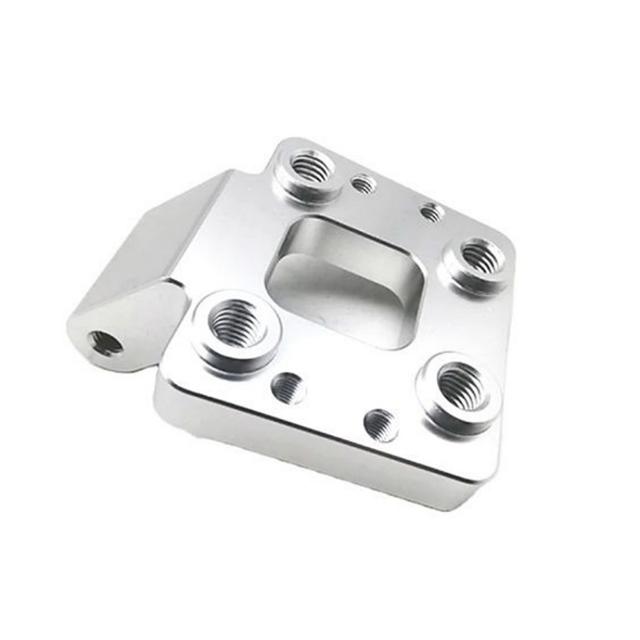

Modern gearbox covers and structural supports feature intricate designs. custom aluminum CNC milling excels at creating these complex geometries. Advanced milling strategies carve out internal fluid channels for lubrication systems. Precision end mills interpolate exact bearing bores and flat mounting faces. High-speed machining (HSM) techniques maintain constant chip loads, extending tool life and leaving superior surface finishes. Machinists use dynamic milling toolpaths to clear deep pockets rapidly without overloading the spindle. This approach ensures the structural integrity of the housing while minimizing overall part weight. Trochoidal toolpaths keep the cutter engaged at a specific angle, preventing tool breakage and allowing for maximum depth of cut.
Complex gearbox housings introduce severe tolerance stacking risks when machined on traditional 3-axis equipment. Every time a part is manually flipped and re-fixtured, alignment errors accumulate. custom aluminum 5-axis CNC machining serves as a critical risk-mitigation tool. 5-axis centers articulate the cutting tool and the workpiece simultaneously. This capability allows machinists to reach five sides of a housing in a single setup. Single-setup machining eliminates fixturing variables. It guarantees perfect concentricity and alignment between opposing bearing bores, ensuring shafts run true and gears mesh flawlessly. Features like Tool Center Point Control (TCPC) allow the machine controller to track the exact tip of the tool in 3D space, ensuring perfect surface blending on complex contours.
Common Machining Defects and Corrective Actions
| Defect Type | Root Cause | Machining Solution |
|---|---|---|
| Bearing Bore Out-of-Round | Excessive clamping force distorting part | Implement custom soft jaws or vacuum fixturing |
| Surface Chatter Marks | Tool deflection or lack of machine rigidity | Use heavy-metal boring bars and reduce spindle speed |
| Tolerance Stacking | Multiple manual setups on 3-axis mills | Transition part to a 5-axis machining center |
| Rapid Tool Wear | Incorrect speeds/feeds in hardened steel | Switch to CBN inserts and optimize chip load |
A vendor's machining capability is only as good as their inspection equipment. You cannot manufacture what you cannot measure. Evaluate potential partners based on their metrology labs. Look for advanced Coordinate Measuring Machines (CMM) capable of verifying complex geometric dimensioning and tolerancing (GD&T) callouts like true position, cylindricity, and runout. Gear profile analyzers are mandatory for verifying involute curves and tooth spacing. Non-destructive testing (NDT) capabilities, such as magnetic particle inspection or ultrasonic testing, ensure internal components are free from micro-cracks before assembly. A CMM is also only as good as its programmer; ensure the shop understands how to establish proper datum reference frames.
Prototyping a successful gearbox component is only the first step. Evaluate how a machine shop transitions a first-article prototype into a repeatable production run. Heavy industry requires unbelievable levels of accuracy and consistency across batches. Tolerance drift is unacceptable. Ask vendors about their statistical process control (SPC) methods. Verify their approach to tool life management and machine calibration. A reliable partner maintains the exact same micron-level precision on the fiftieth part as they did on the first. They achieve this through automated tool probing, thermal compensation on the machine tools, and strict adherence to standardized setup sheets.
Heavy-duty applications demand strict regulatory compliance. Prioritize vendors holding ISO 9001, AS9100, or TS16949 certifications. These standards dictate rigorous quality management systems. Full material traceability is critical. Vendors must provide Material Test Reports (MTRs) proving the chemical composition and mechanical properties of the raw stock. Documented inspection reports, such as AS9102 First Article Inspection (FAI), provide a verified paper trail. This documentation protects your supply chain and ensures accountability for every machined component. If a gearbox fails in the field, you need the paperwork to trace the exact heat lot of the steel used for the broken shaft.
Supply chain bottlenecks frequently disrupt heavy industry manufacturing. Specialized job shops often run near maximum capacity. Mitigate lead time risks by thoroughly evaluating vendor capacity before issuing purchase orders. Assess their machine redundancy. If a critical 5-axis mill goes down, do they have a backup machine capable of handling the workload? Investigate their tooling inventory. Relying on just-in-time tooling deliveries can stall production if specialized cutters are backordered. Strong vendor communication and transparent production scheduling are vital for on-time delivery. Request weekly WIP (Work in Progress) reports to track your components through the shop floor.
Poor component design causes severe manufacturing bottlenecks. Common design flaws include deep pockets with sharp internal corners and inaccessible mounting features. These flaws require custom tooling and drastically increase machining time. Early DFM collaboration prevents costly redesigns. Engaging machinists during the design phase streamlines production and controls costs. Follow these specific DFM practices:
Optimize internal radii to match standard end mill sizes, allowing for faster material removal.
Standardize tapped holes across the housing to reduce unnecessary tool changes.
Maintain uniform wall thicknesses to prevent warping during heat treatment or aggressive milling.
Avoid designing holes with a length-to-diameter (L/D) ratio greater than 10:1 unless absolutely necessary.
Machining deep bearing bores or thin-walled aluminum housings introduces significant technical risks. Tool deflection occurs when cutting forces push the tool away from the workpiece, ruining dimensional accuracy. Chatter, a form of self-excited vibration, destroys surface finishes and shatters carbide inserts. Experienced machinists mitigate these risks through custom workholding solutions that support thin walls. They utilize cutting-edge tooling, such as heavy-metal (tungsten) or tuned vibration-damping boring bars, to reach deep into housings without flexing. Optimized toolpaths that maintain consistent engagement angles further stabilize the cutting process. Adjusting surface footage and feed rates breaks the harmonic frequency causing the chatter.
Compile a complete technical data package including 3D STEP files and 2D prints with strict GD&T callouts before contacting vendors.
Request anonymized First Article Inspection (FAI) reports from prospective machine shops to verify their metrology and CMM capabilities.
Schedule a Design for Manufacturability (DFM) review with your shortlisted vendors to identify cost-saving geometry changes.
Mandate full material traceability and Material Test Reports (MTRs) in your initial purchase order requirements.
A: Standard CNC machining routinely holds tolerances of ±0.005 inches. However, heavy-duty gearbox components require extreme precision. Critical features like bearing bores, shaft journals, and gear meshes often demand tolerances tighter than ±0.0005 inches (0.012mm). Achieving these tolerances requires rigid machine setups, climate-controlled facilities, and advanced metrology equipment.
A: 5-axis machining allows complex housings to be machined on multiple faces in a single setup. This drastically reduces part handling and fixturing changes. Eliminating multiple setups removes alignment errors and tolerance stacking, ensuring perfect concentricity between opposing bearing bores and precise alignment of internal fluid channels.
A: Hardened steels are highly abrasive and difficult to cut. They require specialized carbide, ceramic, or CBN tooling. Machinists must use slower feed rates and highly rigid machine setups to prevent tool deflection and chatter. This increases both production costs and lead times compared to machining softer materials.
A: Turning rotates the workpiece against a stationary cutting tool, making it ideal for cylindrical parts like drive shafts, gear blanks, and pinions. Milling rotates a cutting tool against a stationary workpiece, making it necessary for prismatic, complex parts like gearbox housings, covers, mounting brackets, and internal fluid channels.
A: Always request Material Test Reports (MTRs) to verify raw material composition. Require CMM inspection reports to validate geometric tolerances. For new parts, demand a First Article Inspection (FAI) report. If parts are hardened, require heat treatment certifications to confirm core and case hardness specifications.
A: Advanced 5-axis CNC machines can mill gear teeth for prototypes, reverse-engineered obsolete parts, or highly specialized low-volume applications. However, traditional gear hobbing and shaping remain the preferred methods for high-volume, heavy-duty gear production due to their superior speed, consistency, and optimized surface finish generation.
