Transitioning to 4-axis CNC machining is rarely just a technical upgrade. It is a strategic business decision aimed at resolving production bottlenecks, eliminating tolerance stacking, and driving down per-part costs. Modern manufacturing demands speed and precision. However, many shops still rely on older methods. Relying on standard 3-axis equipment for cylindrical or multi-sided components forces shops into excessive manual repositioning. This physical intervention escalates labor costs. It also exponentially multiplies the risk of alignment errors during production.
You cannot scale efficiently if operators constantly stop machines to flip parts. By understanding the exact mechanical capabilities, hardware constraints, and ROI drivers of 4-axis systems, you gain a massive competitive edge. Technical buyers and production engineers can accurately determine when to invest in in-house 4-axis capabilities. Alternatively, they can use this data to confidently partner with a dedicated polyhedral machining specialist to handle highly complex geometries.
True vs. Fake 4-Axis: Authentic 4-axis systems offer simultaneous, independent rotation, unlike cheaper "fake" setups that hijack X or Y-axis drives for simple indexing.
TCO Reduction: The primary ROI of 4-axis machining stems from consolidating operations—reducing multiple setups and expensive custom jigs into a single fixturing process.
Surface Finish Superiority: Continuous A-axis rotation eliminates the tool stop-start marks common in 3-axis repositioning, drastically cutting post-machining finishing costs.
Implementation Constraints: Adopting 4-axis requires specific hardware clearances (e.g., adequate Z-axis height) and advanced CAM software capable of processing continuous wrapping toolpaths.

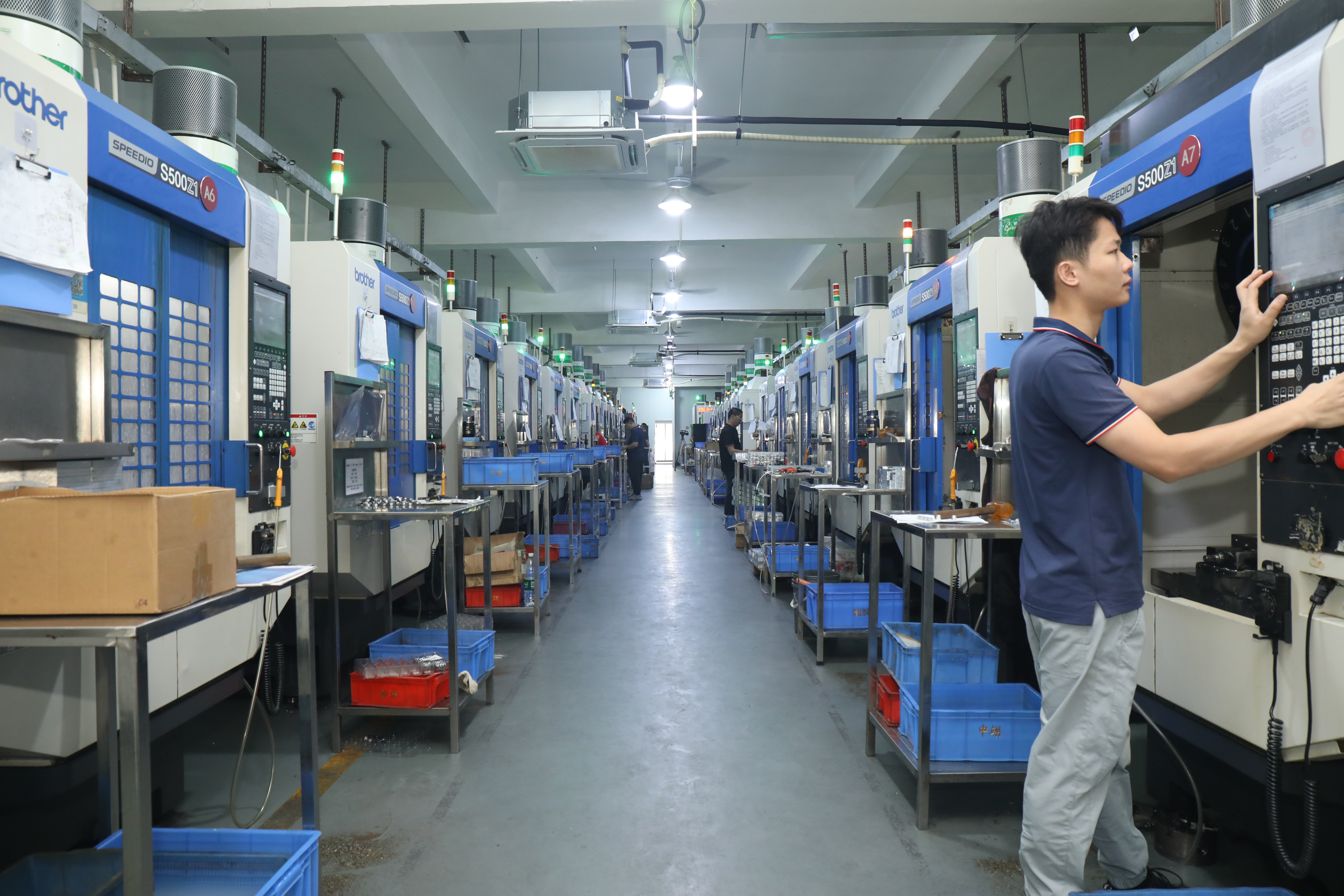

Every machinist knows the standard 3-axis bottleneck. Traditional vertical machining centers operate strictly across the X, Y, and Z linear planes. They excel at flat profiles. However, they hit a hard wall when facing angled features or multi-sided parts. Machining a simple cylinder requires operators to manually unclamp, rotate, and re-indicate the workpiece. This repetitive cycle requires complex, costly custom fixturing. You lose time. You also lose baseline accuracy every single time the part moves.
Adding a rotary axis (typically the A-axis) introduces two distinct operational modes. You must understand both to plan your production routing.
Indexing (Positional or 3+1): The A-axis rotates the workpiece to a fixed degree. The system then locks the rotation using mechanical brakes. After locking, standard 3-axis milling occurs on the newly exposed face. This method is ideal for multi-sided prismatic parts.
Simultaneous (Continuous): The X, Y, Z, and A axes move concurrently. The machine cuts material while the part rotates. This continuous motion is essential for wrapping toolpaths around cylinders and milling complex contours.
Buyers must navigate the market carefully. Many entry-level machines claim 4-axis capabilities but actually deliver "fake" setups. These cheaper machines lack a dedicated driver for the rotary table. Instead, they sever the signal to the X or Y axis. They reroute this hijacked signal to drive the A-axis. You cannot run all four axes at once.
A true 4-axis system requires a dedicated, independent motor. It also needs an advanced controller capable of full 4-axis simultaneous interpolation. If the machine cannot calculate and execute movements across X, Y, Z, and A at the exact same millisecond, it is not a true 4-axis machine.
Feature | Fake 4-Axis Setup | True 4-Axis System |
|---|---|---|
Drive Control | Hijacks X or Y axis signals. | Independent, dedicated A-axis driver. |
Motion Capability | Positional indexing only (3+1). | Full simultaneous 4-axis interpolation. |
Controller Board | Standard 3-axis board. | Upgraded multi-axis capable board. |
Best Application | Simple grooves, basic multi-face holes. | Complex wrapping, continuous contours. |
The true value of a fourth axis becomes undeniable when evaluating industry-specific components. Certain geometries physically demand rotational machining. Attempting them on lesser machines guarantees failure.
Automotive manufacturing relies heavily on simultaneous 4-axis machining. Precision cylindrical components require flawless rotational symmetry. Parts like camshafts and crankshafts demand continuous rotation to mill eccentric lobes perfectly. You cannot achieve these profiles using positional indexing. Similarly, producing durable gearboxes and balanced drive shafts requires the cutter to engage the material without interruption. Continuous rotation prevents stress risers caused by tool stop-start marks.
Aerospace and energy sectors present intense geometric challenges. Materials are tough, and tolerances are microscopic. 4-axis precision efficiently handles the demanding, high-stress contours found in turbine blade roots. The machine smooths complex aerodynamic curves seamlessly. This technology also scales up perfectly for manufacturing molds used to cast wind turbine blades. The simultaneous motion ensures constant tool engagement, reducing tool deflection on exotic aerospace alloys.
Not all complex parts require simultaneous motion. The 3+1 indexing method absolutely dominates fluid dynamic component production. Complex, multi-port components require tight internal tolerances across various intersecting angles. Manufacturers routinely use indexing to drill hydraulic valve bodies. A single setup allows the machine to access four different faces, ensuring all intersecting fluid channels align perfectly. The same principle applies to pump housings and precision worm gears. Indexing guarantees concentricity across opposing faces.
In-house capability is not always the most profitable route. If your shop only handles standard 3-axis work, taking on aerospace components introduces massive risk. OEMs should carefully evaluate project demands. Outsourcing to a specialized provider often makes more financial sense. Do not attempt to brute-force complex geometries on in-house 3-axis machines using expensive jigs. A specialist already possesses the right multi-axis hardware, optimal workholding, and experienced CAM programmers.
Many buyers initially balk at the higher capital expenditure of 4-axis machines. However, looking only at the sticker price ignores Total Cost of Ownership (TCO). The real financial return happens on the factory floor.
The most dramatic economic shift is setup reduction. A complex part might require five to six manual setups on a 3-axis mill. A 4-axis machine often reduces this to just one or two setups. Frame this reduction not just as a time-saver. You are eliminating "tolerance stack-up." Every time an operator unclamps a part, clears chips, and clamps it again, they introduce microscopic alignment errors. These errors stack up. Eliminating setups eradicates this risk entirely.
Production runs scale beautifully using 4th-axis tombstone fixtures. A tombstone is a multi-sided block mounted to the rotary table. You can attach multiple parts to every side of the tombstone.
Increased Capacity: You mount parts on three or four sides. This setup allows multi-part, multi-face machining in a single cycle.
Optimized Footprint: Tombstones effectively utilize the Z-axis vertical space. This approach potentially doubles the usable work area of a standard Vertical Machining Center (VMC).
Unattended Operation: Operators load a tombstone once. The machine then runs for hours without human intervention, drastically lowering labor costs per part.
We often overlook hidden fixture savings. Traditional machining requires designing, milling, inspecting, and physically storing specialized 3-axis angle jigs. A 4-axis rotary table replaces dozens of custom jigs. You hold the part once in a standard chuck or vise. The rotary table simply tilts the part to the exact angle required. This eliminates thousands of dollars in hidden tooling expenses annually.
Simultaneous 4-axis toolpaths maintain a constant chip load. The cutter never leaves the material surface abruptly. This continuous engagement eliminates blend lines and step-overs. The resulting finishes are exceptionally clean. Parts often bypass secondary polishing stages completely. By eliminating manual deburring and polishing, you accelerate delivery times and cut secondary labor costs.
Upgrading to 4-axis capability requires rigorous technical planning. Integrating a rotary axis impacts your entire manufacturing ecosystem. You must carefully assess your drive mechanisms, software capabilities, and physical machine constraints.
The heart of your 4th axis is its rotary drive. You must objectively compare drive mechanisms because they dictate long-term precision.
Drive Mechanism | Backlash Profile | Wear & Maintenance | Best Application |
|---|---|---|---|
Worm Gears | Moderate to High over time. | Requires frequent adjustment. Prone to wear under heavy loads. | Basic indexing, low-budget setups. |
Harmonic Drives | Zero backlash. | Highly durable. Uses elliptical wave generators. | High-precision simultaneous contouring. |
Globoidal Cams | Extremely low backlash. | Pre-loaded bearings. Very low friction and long lifespan. | Heavy-duty aerospace and automotive production. |
Avoid standard worm gears for simultaneous machining. Their inherent backlash ruins continuous surface finishes. Harmonic drives and globoidal cams offer the zero-backlash precision required for professional results.
Your programming department will face a learning curve. G-code for the linear X, Y, and Z axes uses millimeters or inches. Conversely, G-code for the rotary A-axis uses degrees. Your team must adapt to wrapping toolpaths.
Address the hidden IT cost immediately. Continuous 4-axis CAM processing requires robust computational power. Generating smooth, collision-free wrapping toolpaths demands immense mathematical calculations. Your engineering computers need OpenCL support and high-end GPUs. A standard office PC will crash or freeze when attempting to process complex multi-axis CAM simulations.
Discuss the physical realities of adding a 4th axis to an existing VMC before purchasing hardware. You will lose Z-axis clearance. A heavy-duty rotary table and its tailstock sit high off the machine bed. This vertical height subtracts directly from your available Z-axis travel. Verify your tallest parts will still clear the spindle nose.
Furthermore, older machine controllers often lack processing speed. Migrating to multi-axis capable boards is frequently necessary. If your current controller suffers from low block-processing speeds, a 4-axis toolpath will cause the machine to stutter. This stuttering ruins the surface finish and damages cutters.
Capital equipment purchases require objective justification. You need a solid framework to evaluate whether parts belong on a 3-axis, 4-axis, or 5-axis machine.
Examine your CAD files carefully. Look at the angles.
Single-Axis Angles: Does the part feature angled planes or holes relative to only one rotational axis? If yes, 4-axis is the perfect solution.
Compound Angles: Does the part feature compound angles tilting across multiple planes simultaneously? If yes, 4-axis will fail. You require full 5-axis capabilities.
Position 4-axis machining as the sweet spot for low-to-medium volume production. It excels at high-complexity prototyping. In agile manufacturing environments, setup time dictates profitability. The ability to drop a raw billet into a 4-axis chuck and walk away with a finished multi-sided part is invaluable. It provides maximum agility for fast-changing job shop schedules.
Use this short, verifiable checklist to justify the higher hourly machine rate of 4-axis equipment. Will the transition result in:
Zero hours spent designing and manufacturing custom angle jigs?
A drastic reduction in scrapped parts caused by manual re-fixturing?
At least a 50% reduction in operator intervention during the machining cycle?
The elimination of secondary hand-polishing or deburring steps?
If you answer yes to most of these points, the higher hourly rate easily offsets the total reduction in project lifecycle costs. The investment is justified.
Understanding these capabilities proves that 4-axis CNC machining is an indispensable manufacturing asset. It elegantly bridges the gap between standard 3-axis limitations and the massive capital expenditure required for full 5-axis systems. By consolidating setups, eradicating tolerance stacking, and enabling continuous rotation, you lower your total cost of ownership while producing superior components.
Do not let complex geometries slow your production schedule. Submit your CAD files to our engineering team for a comprehensive manufacturability review today. We will audit your specific part geometries to determine if a streamlined 4-axis process can reduce your lead times and boost your bottom line.
A: Not easily. Upgrading requires adequate physical Z-axis clearance to accommodate the rotary table. You also need supplementary stepper drivers installed in the control cabinet. Most importantly, the machine's controller architecture must support simultaneous 4-axis interpolation. Upgrading an incompatible machine is often cost-prohibitive.
A: The primary difference lies in rotation planes. A 4-axis machine adds one rotary axis (typically A), allowing rotation along a single plane. A 5-axis machine adds two rotary axes (often A and B, or B and C). This enables the tool to approach the workpiece from virtually any compound angle simultaneously.
A: Yes, the hourly machine rate is typically higher due to the advanced hardware, expensive CAM software, and specialized operator training required. However, it lowers total project costs significantly. It drastically reduces manual labor, eliminates custom fixture manufacturing, and consolidates multiple setups into one continuous operation.
