Transitioning from a digital CAD file to a physical, production-grade part demands a delicate balance. You must weigh precision against speed and strict budget limits. Choosing the wrong manufacturing method quickly derails project timelines and inflates unit costs. Procurement teams, junior engineers, and hardware startups often face this exact hurdle. Over-specifying a machining process remains a surprisingly common pitfall. Buyers frequently request complex multi-axis milling when simpler setups would easily suffice. This over-specification drives up production costs without adding any functional value to the final product.
Understanding the operational realities of 3-Axis CNC Machining allows buyers to accurately evaluate vendor capabilities. You can optimize designs for manufacturing (DFM) much earlier in the engineering phase. Mastering these fundamentals ultimately helps you control procurement costs. In this guide, we break down how to leverage basic CNC routing and milling to make smarter sourcing decisions for your next hardware project.
3-axis CNC machining remains the most cost-effective solution for parts requiring single-setup milling or standard geometries.
It serves as the cornerstone of planar and contour machining, offering high repeatability for low-to-medium volume runs.
Evaluating between 3-axis and multi-axis solutions depends heavily on setup times, part complexity, and required tolerances.
Lowering Total Cost of Ownership (TCO) relies on optimizing CAD files to eliminate unnecessary tight tolerances and deep cavities before requesting a quote.

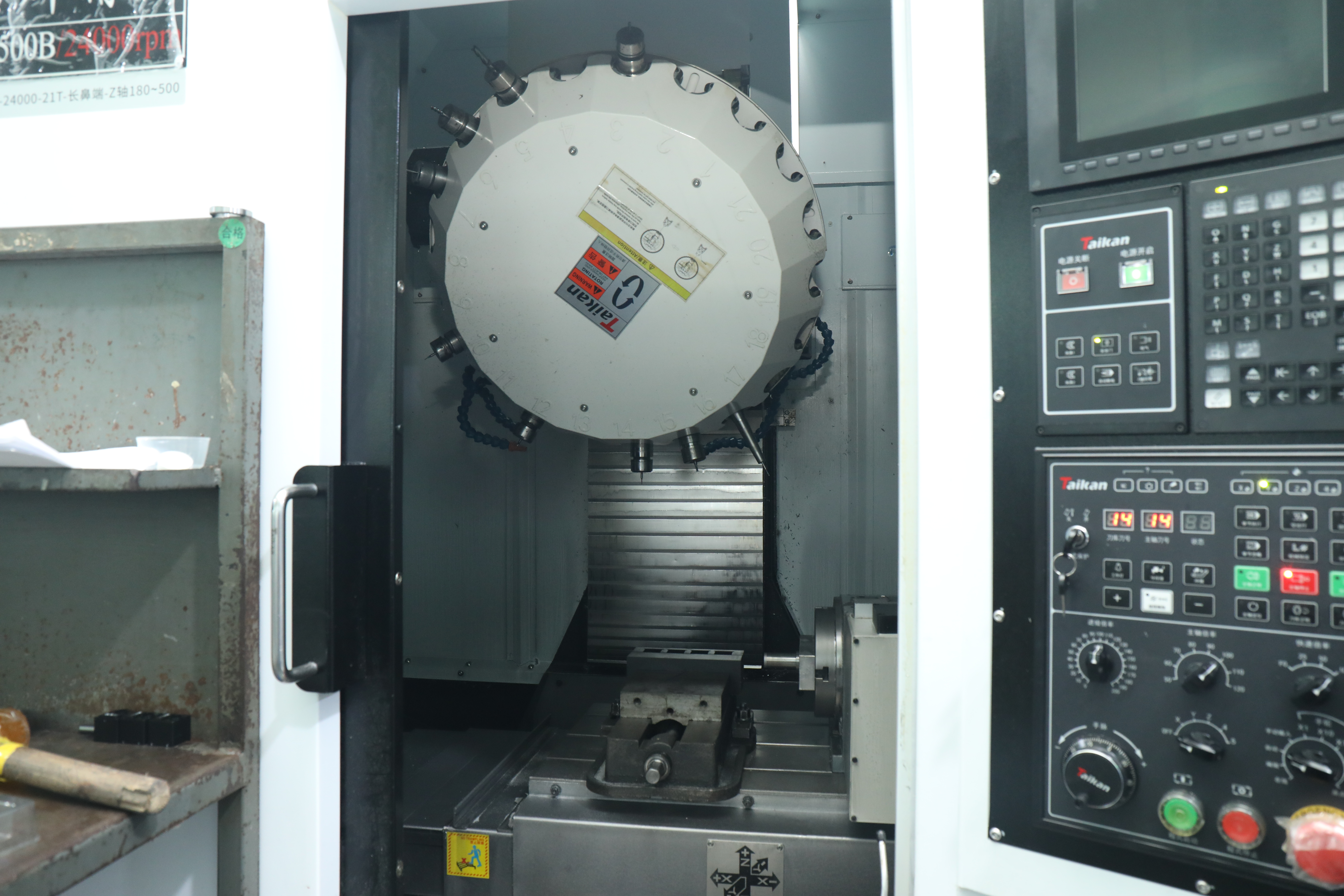

The term describes a subtractive manufacturing process utilizing three linear axes of movement. The cutting tool operates along the X-axis moving left to right. It also moves along the Y-axis traveling front to back. Finally, the spindle plunges up and down along the Z-axis. The machine executes these movements simultaneously to carve away material from a stationary block. This synchronized motion enables the creation of precise geometric profiles. Operators secure the raw material block to the machine bed using specialized vises or clamps. Once secured, the spindle removes excess material according to a pre-programmed toolpath.
Engineers consistently rely on this method for its reliability and economic viability. It functions as the cornerstone of planar and contour machining for the vast majority of commercial manufacturing. Most everyday mechanical parts do not require simultaneous five-axis articulation. A standard three-axis mill processes flat surfaces, drills precise holes, and cuts defined slots flawlessly. Its straightforward mechanics make programming significantly faster. Operators face fewer collision risks during the milling cycle. This simplicity directly translates to lower operational costs and faster turnaround times.
Procurement teams measure success at this stage through several critical metrics. Predictable lead times rank highest among buyer priorities. Three-axis centers are abundant, meaning machine shops rarely face devastating bottleneck delays. Material versatility presents another major advantage. These machines process everything from soft plastics to hardened tool steels. Low setup costs remain the most attractive benefit. Compared to complex multi-axis turning centers, basic milling requires minimal custom fixturing. You achieve highly accurate components without paying the premium associated with advanced kinetic machinery.
Ideal parts feature flat profiles requiring minimal manual repositioning. Components designed to be machined from a single direction maximize efficiency. When the cutting tool accesses all necessary features from above, production speeds skyrocket. Single-setup parts eliminate the need for an operator to unclamp, flip, and re-clamp the workpiece. This streamlined workflow dramatically reduces labor hours. Designers should aim for parts featuring uniform wall thicknesses and easily accessible internal radii.
Many ubiquitous industrial components default to three-axis production due to their planar nature. These standard applications form the backbone of mechanical assemblies globally. You will find this process optimal for components such as:
A standard flange used to connect pipes or valves.
An equipment end cover designed to protect sensitive internal gears.
A basic mounting plate serving as a secure structural foundation.
Various general machinery parts like brackets, spacers, and simple housings.
Despite its versatility, three-axis milling has strict geometric limitations. It struggles heavily with severe undercuts hidden beneath overhanging ledges. Standard end mills cut vertically downward and cannot easily reach laterally underneath a surface. Complex internal cavities present another major roadblock. If a part requires hollowed-out internal structures, three-axis routing cannot complete the job alone. Features requiring angular tool access also cause immediate failures. If a hole must be drilled at a 45-degree angle, the operator must manually build an angled fixture. This workaround destroys the economic benefits of the baseline process.
Framing the multi-axis upgrade decision requires understanding the trade-off between machine hourly rates and manual setup labor. Advanced machines charge higher hourly rates but drastically reduce human intervention. The chart below simplifies the evaluation framework.
Machining Type | Primary Motion | Ideal Part Complexity | Setup Labor Impact | Hourly Cost Profile |
|---|---|---|---|---|
3-Axis | X, Y, Z linear | Planar, single-sided, or 2-sided | High (if frequent flipping needed) | Low |
4-Axis | X, Y, Z + A (rotation around X) | Cylindrical features, multi-sided wrapping | Medium (continuous rotation saves flips) | Moderate |
5-Axis | X, Y, Z + A, B (two rotational axes) | Organic curves, deep angled features | Very Low (often "done in one") | High |

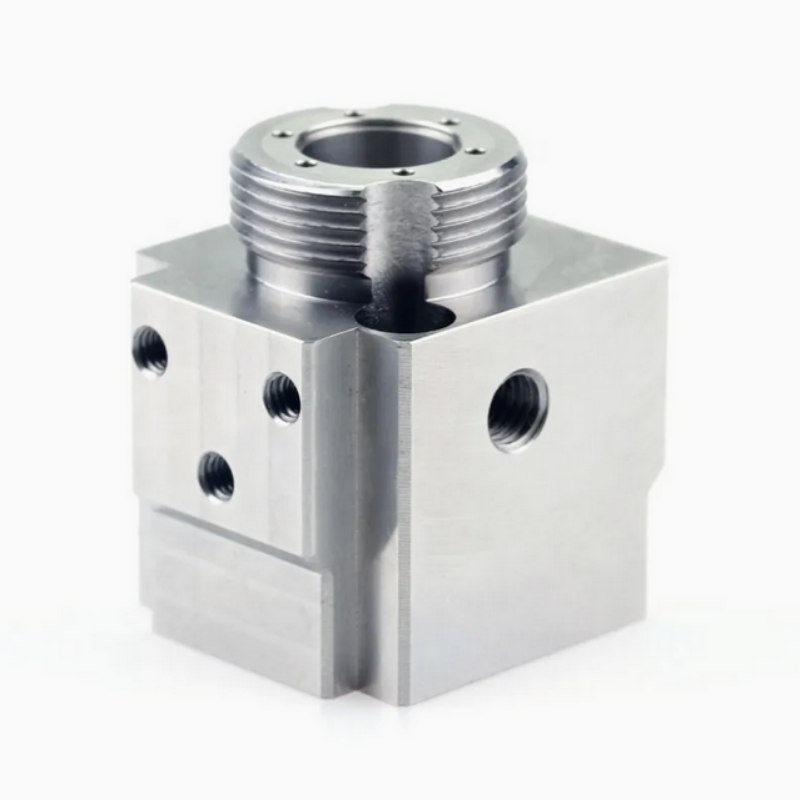

Three-axis machines require manual flipping for multi-sided parts. Every time a part changes orientation, an operator must intervene. They must clean the vise, secure the part, and recalibrate the zero point. Consider a cubic part requiring features on five different sides. If a part needs five different setups, the manual labor cost escalates rapidly. The wages paid for these manual interventions may eclipse the savings of using a cheaper three-axis machine. In these specific scenarios, upgrading to a five-axis machine lowers the overall unit price.
Industry professionals refer to positional errors as "tolerance stacking." Every manual repositioning introduces minute dimensional errors. Even the most skilled operator using a premium dial indicator faces microscopic misalignments. When a part flips, the new cut references a previously machined face. If the first face deviates by 0.001 inches, the second setup inherits and compounds that error. These microscopic discrepancies quickly stack up beyond acceptable limits. Continuous five-axis machining becomes necessary for ultra-precise multi-face relationships. By keeping the part secured in one fixture, you entirely eliminate manual tolerance stacking.
Total Cost of Ownership extends far beyond the raw metal and the machine hourly rate. Several hidden variables dictate your final invoice.
Machinability ratings heavily impact spindle time and tool wear. Aluminum 6061 cuts like butter, allowing the machine to run at maximum speeds. Titanium, conversely, demands slow feed rates and rigid setups. Harder materials rapidly degrade cutting edges. Machine shops pass the cost of broken end mills directly onto the buyer. Selecting an easily machined alloy reduces cycle times and preserves tooling, aggressively driving down your TCO.
Specifying tighter-than-necessary tolerances creates an exponential cost curve. Standard commercial tolerances (like ISO 2768-m) allow shops to use standard tools at high speeds. Demanding a ±0.0005 inch tolerance forces the shop to slow down dramatically. They must pause the machine frequently to measure the part. They may even require temperature-controlled environments to prevent material expansion. You pay a massive premium for unnecessary precision.
Cosmetic requirements dictate a large portion of the unit cost. "As-milled" finishes show visible tool marks but cost nothing extra. Secondary operations like anodizing, bead blasting, or powder coating add days to the lead time. They require transporting parts to specialized treatment facilities. Evaluate whether your internal mechanical components truly need a mirror-smooth aesthetic finish.
Leveraging three-axis machinery accelerates prototyping phases substantially. The low barrier to entry ensures you find willing vendors quickly. Fast programming times mean chips can fly within hours of submitting a CAD file. This speed allows hardware startups to iterate designs rapidly. Once the prototype proves successful, the transition into bridge production feels seamless. The same CAM programs used for the prototype easily scale up to produce hundreds of units. This continuity maximizes your initial engineering investment.
Manufacturers frequently reject or upcharge poorly prepared CAD submissions. Machine shops operate on tight margins and detest ambiguous instructions. If a 3D model contains unmachinable features, the quoting software flags it immediately. Missing 2D drawings also cause massive friction. Without a PDF drawing calling out threaded holes or critical fits, the machinist must guess your intent. Guesswork invariably leads to scrapped parts and hostile vendor relationships.
Applying strict Design for Manufacturing principles eliminates pre-production bottlenecks. Follow these rules before submitting any file:
Standardize internal corner radii: Sharp internal 90-degree corners require wire EDM processing. Add generous radii to all internal vertical edges. Match these radii to standard end-mill sizes (e.g., larger than 1/8 inch) to prevent tool chatter.
Avoid excessively deep pockets: End mills deflect when extended too far. Maintain a safe depth-to-diameter ratio. Limit pocket depths to three or four times the diameter of the required cutting tool.
Limit non-standard threaded holes: Stick to standard metric (M3, M4) or imperial sizes. Custom thread pitches force shops to purchase specialized taps, delaying your project by weeks.
Design for standard stock sizes: Dimension your raw part slightly smaller than standard stock aluminum plates. This minimizes the volume of raw material the machine must aggressively hog out.
Proactive DFM analysis functions as a critical step before finalizing the purchase order. Many digital manufacturing networks offer automated DFM feedback upon upload. Review these warnings carefully. Catching a deeply buried unmachinable feature during the CAD phase costs nothing to fix. Discovering that same flaw after raw material is ordered results in wasted capital. Treat the vendor's DFM report as a collaborative engineering review, not an annoyance.
Vetting a machine shop requires looking beyond the bottom-line price. The cheapest quote often hides poor quality control or sluggish lead times. You must evaluate their equipment redundancy. A shop with ten identical three-axis mills can easily absorb a machine breakdown. A shop with only one mill leaves your project highly vulnerable to delays.
Verify the vendor holds active ISO 9001 certifications. This ensures they follow documented, repeatable quality management processes. Request examples of First-Article Inspection (FAI) reports. An FAI report proves the shop rigorously measures the first part off the line before running the entire batch. Additionally, demand material traceability. Reputable shops provide material test reports (MTRs) to guarantee your aluminum is not a cheap, impure substitute.
Assess the vendor's ability to provide proactive engineering feedback. The best machine shops act as extensions of your design team. They provide automated or engineering-led DFM feedback to catch design flaws before chips fly. If a shop blindly accepts a flawed CAD file without asking questions, they do not care about your success. Prioritize partners who suggest minor design tweaks to lower your manufacturing costs.
Creating a standardized Request for Quote (RFQ) package streamlines the shortlisting process. Package your native 3D CAD files alongside step files. Include comprehensive 2D PDF drawings highlighting critical tolerances. Clearly state material callouts, including acceptable alternatives. Finally, outline your volume tiers. Asking for quotes at 10, 50, and 500 units reveals how the vendor scales their pricing based on setup amortization.
Three-axis CNC machining remains the most pragmatic starting point for custom hardware parts. Its blend of affordability, speed, and precision makes it an indispensable tool for engineers. You simply must ensure your design aligns with its operational strengths. Flat, easily accessible features will always yield the best economic results.
Focus heavily on strict Design for Manufacturing principles prior to quoting. Removing deep pockets, enlarging internal radii, and loosening non-critical tolerances immediately slashes your production costs. You maximize the economic advantages of standard routing and milling by respecting the physical limitations of the cutting tools.
Take action on your current design today. Upload your finalized CAD file to a trusted manufacturing partner for an automated DFM review. Request a tiered quote to see real-time pricing and accurate lead times for your next project.
A: Three-axis machines process a vast array of materials. You can easily mill engineering plastics like Delrin, PEEK, and polycarbonate. They also handle non-ferrous metals like aluminum, brass, and copper effortlessly. Harder metals, including carbon steel, stainless steel, and titanium, are fully supported. However, material hardness dictates the cutting speed. Harder alloys require slower feed rates and rigid setups, which naturally increases the overall machining time and cost.
A: Standard commercial tolerances typically fall around ±0.005 inches (±0.125 mm). This baseline is highly cost-effective and suitable for most general assemblies. Precision capabilities can reach as tight as ±0.001 inches or better depending on the machine's calibration. However, specifying tighter tolerances exponentially increases costs. Operators must slow down the machines and perform frequent manual measurements to guarantee absolute precision.
A: Evaluate the geometry and feature access. Use 3-axis machining for parts with single-plane features or flat geometries that require minimal manual flipping. Upgrade to 5-axis machining if your part features continuous organic curves, deep angled pockets, or requires features machined into five different faces. A 5-axis setup eliminates manual repositioning, reducing human error on highly complex components.
A: Yes, but with strict limitations. Standard end mills cut straight down. To create an undercut on a 3-axis mill, the operator must use specialized cutting tools like T-slot cutters or Woodruff keys. These tools require precise programming to avoid collisions. Using specialized tooling adds to the setup time and increases the overall part cost compared to standard vertical milling.
