In precision manufacturing, a single dimensional deviation can trigger catastrophic assembly failures. You might face unexpected production downtime. Worse, you could encounter costly product recalls if parts fall short of design specifications. Modern machining technology boasts incredible inherent accuracy. However, powerful equipment alone cannot guarantee consistent results. Variables change constantly during any production run. Evaluating a prospective manufacturing partner requires deeper investigation. You must look far beyond their impressive equipment list. You need to understand their established quality control frameworks thoroughly. They must possess robust testing methodologies and strict compliance standards. In this article, you will learn how inspection protocols separate commodity shops from reliable suppliers. We will explore the critical certifications you should demand. You will discover the three-stage inspection framework necessary for manufacturing success. You will also learn how to balance tight tolerances against manufacturing costs effectively.
Industry-standard certifications (ISO 9001, AS9100) are foundational but must be backed by rigorous internal inspection protocols.
A robust QC process for CNC machined parts relies on a three-stage methodology: First Article Inspection (FAI), in-process monitoring, and final validation.
Over-specifying tolerances dramatically increases costs; a capable partner will balance tight tolerances with appropriate surface finishes via Design for Manufacturability (DFM) feedback.
Advanced metrology (like CMM and optical comparators) combined with Statistical Process Control (SPC) is non-negotiable for High-Tolerance CNC Parts for Mass Production.
Poor quality creates a cascading negative impact on your business. You incur immediate financial losses from scrap material. Expensive rework hours drain your budget quickly. Delayed deliveries then create massive assembly bottlenecks on your production floor. Consider the aerospace sector. A single out-of-tolerance bracket can halt the assembly of an entire aircraft. The cost of a delayed bracket goes far beyond raw material. It includes the idle time of your assembly crew. Ultimately, substandard components compromise your brand reputation. Every defective unit shipped multiplies the financial damage exponentially.
What does a successful manufacturing outcome actually look like? You want predictable yield rates every single time. You need full material traceability from raw stock to finished component. Finally, you must demand repeatable dimensional accuracy regardless of the batch size. These elements build a highly reliable supply chain. When a supplier meets these criteria consistently, you can forecast your production schedules confidently.
Many engineers assume automated equipment completely eliminates human error. This is a dangerous misconception. Variables constantly threaten precision during machining. Tool wear alters dimensions gradually as cutting edges degrade. Thermal expansion shifts metal behavior during aggressive, high-speed cutting. For example, aluminum expands significantly as shop temperatures rise. A part machined perfectly at dawn might fail inspection by afternoon if thermal controls are ignored. Material inconsistency also introduces unpredictable tool deflection. Strict quality control standards are absolutely vital. They catch and correct these variables before they produce bad parts. Machine operators must intervene proactively.
To evaluate a partner properly, you need a verifiable baseline. Certifications prove a supplier operates under recognized, global frameworks. They show a commitment to systemic quality.
This serves as the foundational standard for Quality Management Systems (QMS). It demonstrates a facility uses repeatable, documented processes. They prioritize continuous improvement rather than merely sorting good parts from bad. Auditors verify their commitment to management reviews. They also check for proper resource allocation and process consistency.
General certification is often not enough for highly regulated industries. You should look for specialized credentials.
AS9100 (Aerospace & Defense): This standard demands strict material traceability. It mandates rigorous risk management protocols and foreign object debris (FOD) prevention.
ISO 13485 (Medical Devices): This certification requires extensive documentation. Facilities must maintain biological safety controls. They also require complete lifecycle traceability for critical components like surgical implants.
IATF 16949 (Automotive): This standard focuses heavily on defect prevention. It emphasizes variation reduction and waste elimination across complex, high-volume supply chains.
Watch out for common industry traps. Beware of partners claiming they are "ISO compliant." This phrase means little without an active, verifiable certification number. "Compliant" simply implies they follow some rules loosely. A legitimate vendor will gladly provide their current certificate upon request. You should verify the certificate expiration date immediately. Always check the auditing body for authenticity.
To consistently produce reliable CNC machined parts, manufacturers must utilize a comprehensive framework. Quality cannot simply be inspected into a component at the end. It must be actively monitored throughout the entire workflow.
Before mass production begins, engineers must validate the initial machine setup. First Article Inspection (FAI) serves this exact purpose. Operators produce a single part. Inspectors then measure every single dimension against a ballooned engineering drawing. This rigorous check catches programming errors immediately. It also verifies tool selections. Pre-production involves verifying raw material certifications too. Manufacturers check Mill Test Reports (MTRs) meticulously. They do this to prevent counterfeit or substandard stock from entering the facility.
Once approval is granted, production begins. However, machines naturally drift over time. Machine operators and automated probes actively monitor tool wear. They also watch for thermal drift during the run. Operators measure critical dimensions at set intervals. Tracking this data mathematically is called Statistical Process Control (SPC).
SPC data allows engineers to adjust tool offsets proactively. They make corrections before a dimension falls out of tolerance. This level of active monitoring is an absolute necessity. It is non-negotiable for High-Tolerance CNC Parts for Mass Production. Control charts plot these measurements to identify hidden trends visually. If a trend approaches the upper control limit, the operator swaps the cutting tool.

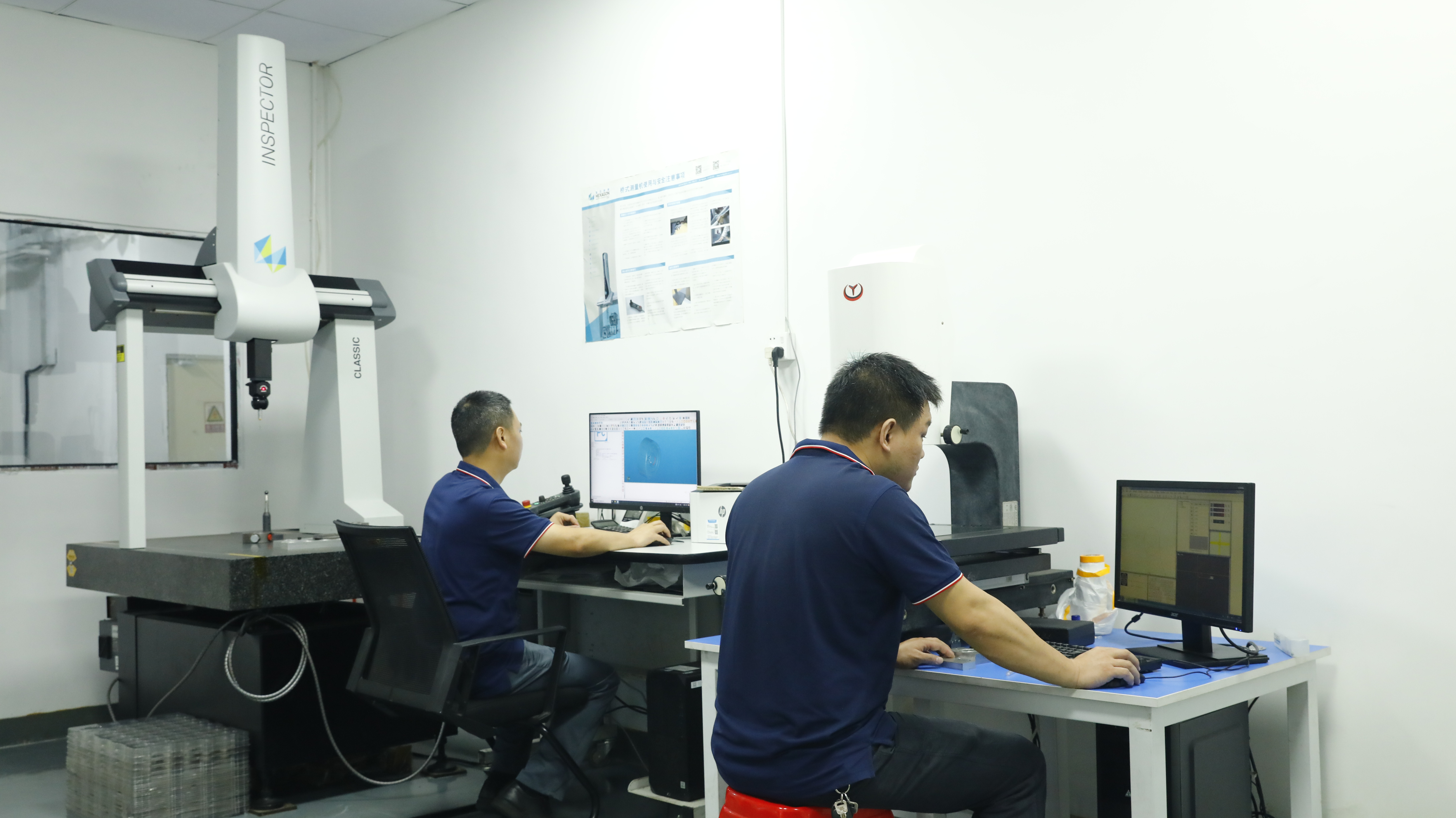

The last phase verifies the finished lot before shipping. Technicians use advanced metrology tools to ensure absolute compliance. Coordinate Measuring Machines (CMM) easily trace complex geometries. They verify intricate geometric dimensioning and tolerancing (GD&T) callouts like true position or flatness. Optical comparators project a magnified silhouette of the part onto a screen. This allows inspectors to verify tiny external profiles quickly.
Profilometers play a crucial role here too. They drag a delicate diamond-tipped stylus across the metal surface. They do this to verify surface roughness (Ra) accurately. Once a batch passes these rigorous checks, the quality department acts. They issue a Certificate of Compliance (CoC). They provide these documents alongside comprehensive final inspection reports.
Designers often push for the tightest possible dimensions. They believe this automatically guarantees a better product. However, this creates a major engineering dilemma. There is an exponential relationship between ultra-tight tolerances and increased manufacturing costs. Tighter tolerances require much slower cutting speeds. They demand frequent tool changes. They also require constant manual inspection by highly skilled technicians.
You must also understand how surface roughness dictates functional tolerance. A rough surface finish completely negates a tight dimensional tolerance. The microscopic high peaks of a rough surface will quickly wear down during operation. This wear immediately changes the actual dimension of the mating part. You cannot hold a tolerance of +/- 0.0005 inches if the surface finish resembles sandpaper.
Below is a summary chart comparing manufacturing methods, typical tolerances, and relative cost impacts.
| Tolerance Level | Typical Range (Inches) | Required Machining Process | Relative Cost Impact |
|---|---|---|---|
| Standard | +/- 0.005 | Standard CNC Milling/Turning | Low (Baseline) |
| Precision | +/- 0.001 | Refined CNC Milling, Fresh Tooling | Medium (2x - 3x) |
| Ultra-Precision | +/- 0.0005 | Grinding, Strict Thermal Control | High (4x - 6x) |
| Extreme | +/- 0.0001 | Specialized Jig Grinding, Lapping | Very High (10x+) |
An expert manufacturing partner will review your drawings critically. They will challenge over-engineered specifications respectfully. Through Design for Manufacturability (DFM) collaboration, they suggest targeted tolerances. They apply these tight numbers only on critical-to-function features. This strategic approach optimizes your return on investment. It reduces cycle times while maintaining complete functional integrity.
Finding the right supplier requires asking highly targeted questions. You must dig into their daily operations. Here are the steps to evaluate a potential partner's quality framework:
Examine Equipment Calibration: Do they have a documented, strict calibration schedule? CMMs, micrometers, and thread gauges lose accuracy over time. Ask to see their master calibration logs. Verified calibration proves their measurements are actually trustworthy.
Review Scrap & Rework Policies: How do they handle non-conforming parts? Look for transparent Corrective and Preventive Action (CAPA) procedures. Mistakes happen in manufacturing. A strong CAPA system prevents those specific mistakes from ever recurring.
Assess Communication & Transparency: Do they provide comprehensive inspection reports unprompted? Reliable vendors supply AS9102 forms willingly. They share equivalent data unprompted with every single shipment. They never hide their yield rates or pretend scrap does not exist.
Execute a Next-Step Action: Never commit to mass production blindly. Recommend starting with a low-volume pilot run first. Request a full FAI report for this small batch. This allows you to empirically test the vendor's actual quality control claims.
Stringent quality control standards are the definitive dividing line in manufacturing. They separate commodity machine shops from highly reliable manufacturing partners. Anyone can buy a modern CNC mill. However, very few can control complex process variables perfectly. Equipment alone does not guarantee a successful production run.
Predictable quality directly protects your profit margins day after day. It also secures your go-to-market timelines by eliminating unexpected assembly delays. Substandard parts simply cost too much in the long run. By prioritizing certifications, structured inspections, and smart tolerancing, you mitigate massive operational risks.
Submit your CAD files to a trusted partner for a comprehensive DFM review today. Contact their engineering team to discuss your specific tolerance constraints. Clarify the exact quality control requirements for your next project before mass production starts.
A: Standard ISO 2768 tolerances apply to most non-critical dimensions. For precision machining, the standard is usually +/- 0.005 inches. However, specialized equipment can achieve much tighter tolerances based on your specific design requirements.
A: An FAI report is a complete dimensional verification of the first manufactured part. Inspectors check it against every single callout on the engineering drawing. This rigorous process is essential for verifying the initial machine setup before mass production begins.
A: Functional mating surfaces require specific roughness average (Ra) values. Proper surface finishes prevent excessive friction, premature wear, or fluid leakage. Inspectors must verify these values meticulously during the quality control process to ensure functionality.
A: Material traceability ensures regulatory compliance and reduces liability risks. It guarantees the actual metal used matches the mechanical properties required by your engineering specifications. Manufacturers prove this using certified Mill Test Reports (MTRs) directly from the metal foundry.
