Sheet Metal Bending: The Ultimate Guide

Sheet metal bending is a formative (not subtractive) manufacturing process that shapes parts from thin metal sheets. By applying force at specific points, the metal is permanently deformed into desired angles or curves. Common bending methods include:

Air bending; Bottom bending; Stamping; Roller bending; V-bending, etc.

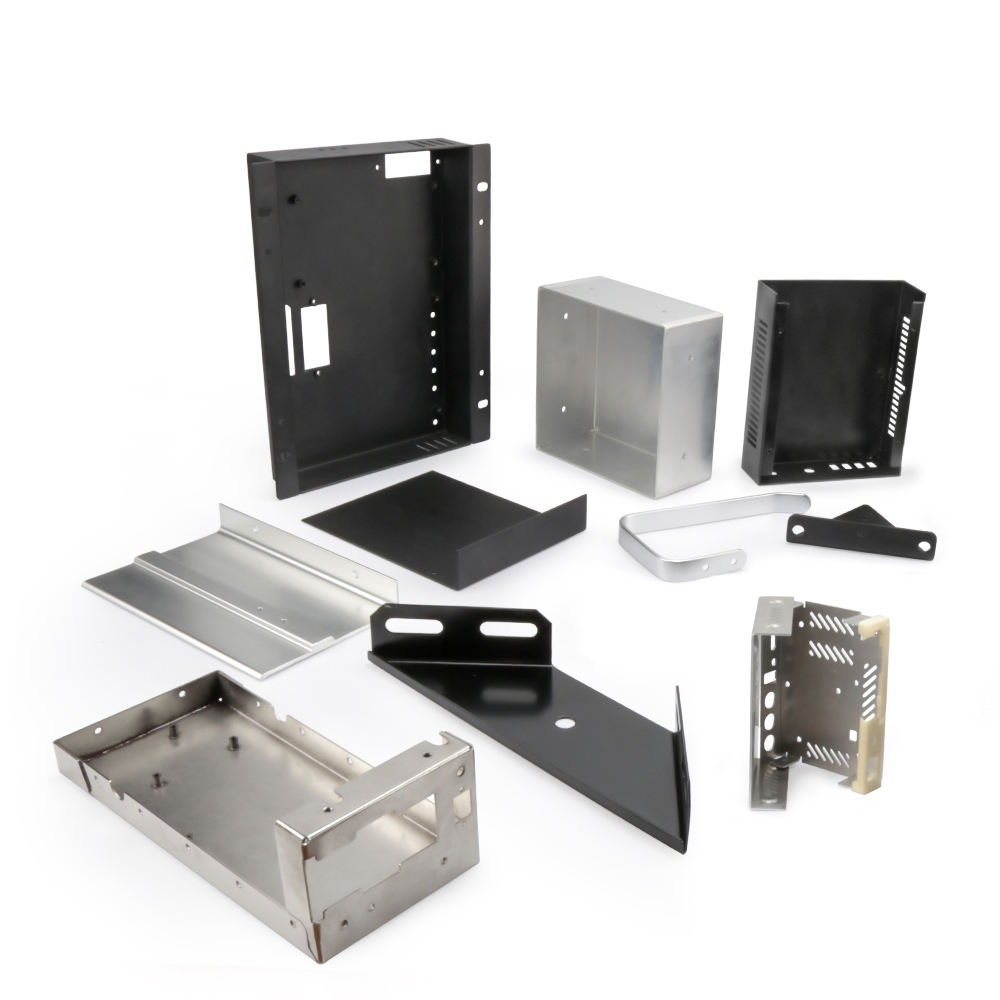

Each technique has unique advantages, and selection depends on project requirements. After bending, excess material may be removed through trimming or cutting. This process is essential for producing durable, high-precision components such as brackets, ductwork, enclosures, and automotive parts.

Bend angles and curvature can be adjusted based on material properties and design needs. Suitable materials include:

Aluminum; Copper; Carbon steel; Stainless steel...

Precision is critical, as variations in material thickness and type affect the outcome.

Why Choose Zhongyi Precision?

Achieving tight tolerances in sheet metal bending is challenging, but Zhongyi Precision simplifies the process. We specialize in bending laser-cut or CNC-machined parts to your exact specifications. Our commitment to accuracy ensures consistent, high-quality results.

From concept to finished product, we handle every step—including design, laser cutting, assembly, and powder coating—to deliver products that exceed expectations.

What Is Sheet Metal Fabrication?

Sheet metal fabrication involves transforming flat metal sheets into specific shapes through cutting and forming. The process typically includes:

Blanking/Cutting – Sheets are cut using lasers, water jets, plasma, or punches to create holes and edges.

Forming – A press brake (manual or CNC) bends the metal into 3D shapes using dies.

This method supports both simple and complex geometries, making it ideal for prototyping and mass production.

Sheet metal fabrication is used in:

Aerospace (structural components); Automotive (crash beams, enclosures); Construction (panels, ducts); Electronics (chassis, enclosures); Energy (EV charging stations)

Zhongyi Precision's engineering team provides end-to-end services, including:

Design, Laser cutting, Welding, Powder coating...

Material Selection for Sheet Metal Bending

Material choice impacts bendability and performance. Common options include:

Aluminum 1100-H14, 3003, 5052, 6061

Steel Low-carbon 1018, A36, 1045 (hot-rolled)

Stainless Steel 301, 304, 316, 400 series

Copper/Brass C110, phosphor bronze

Nickel Alloys Inconel 625, Nickel 400

Titanium Grade 2, Grade 5 (6Al-4V)

Thicker sheets (>0.25 in) are classified as plates, while thinner sheets are called foils.

Standard tolerances for sheet metal bending:

Dimension Range Edge-to-Edge Edge-to-Hole Bend-to-Bend Angle Tolerance

≤ 8 in (203 mm) ±0.005 in (0.13 mm) ±0.010 in (0.25 mm) ±0.020 in (0.51 mm) ±2°

8–16 in (203–406 mm) ±0.010 in (0.25 mm) ±0.015 in (0.38 mm) ±0.020 in (0.51 mm) ±2°

16–36 in (406–914 mm) ±0.015 in (0.38 mm) ±0.020 in (0.51 mm) ±0.030 in (0.76 mm) ±2°

Bending Processes

Different techniques are used based on material and design:

Roll Bending – Creates curved shapes.

Folding – Ideal for large sheets.

Wiping – Reduces springback.

Rotary Bending – Protects pre-painted surfaces.

Air Bending/Stamping – High precision.

3-Point Bending – For heavy-duty applications.

Elastomer Bending – Prevents surface damage.

Surface Treatments:

Post-bending finishes enhance durability and aesthetics:

Anodizing (Type II/III) – Corrosion/wear resistance (common for aluminum).

Chromate Coating – Improves conductivity (MIL-DTL-5541 compliant).

Gold/Silver Plating – High solderability (MIL-G-45204 / AMS QQ-S-365D).

Powder Coating – Durable, color-customizable finish.

Sheet metal bending is a versatile process for creating high-quality metal components. Zhongyi Precision offers precision manufacturing with:

Fast turnaround (50+ parts in 3 days).

Strict confidentiality (NDA available).

Quality assurance (CMM, 2D measurement, full inspection reports).

FAQ

Q1: What is the lead time for custom parts?

A: Typically 3 days for 50pcs, depending on complexity.

Q2: How is design confidentiality ensured?

A: We recommend signing an NDA for all orders.

Q3: How is quality verified?

A: We use CMMs, calipers, and gauges, with full inspection reports provided.
